THINBAND Mica
Barrel and Nozzle heaters
Our Thinband heater is the redesign of the mica band heater. Thinbands offer significant flexibility because they can be opened to the full length of the band (also called a barrel) without causing damage to the internal design of the band heater.
Thinbands can be installed directly onto barrel heaters – without needing to remove the initially installed heater. Thinbands have a more precise one-piece design with narrow fold-over inner edges. Thinbands only require one set of leads or terminals which are applied at the end of the construction process. At Heat and Sensor Technology, it is our standard practice – to assemble each Thinband we manufacture with a polished and pristine finish.
For the fastest installation… Consider requesting the Quick Clamp latch variation
(this styling’s available only on stock Thinband barrels)
Thinband features and benefits
More than 50,000 variations can be created for Thinbands lead attachments with our exclusive Lead Adapter — or LA — manufacturing method, that significantly reduces costly downtime.
- All Thinband heaters can be installed on a barrel without removing pre-existing heaters
- The terminals have a more finished and polished appearance
- They are built with a thinner core and smaller fold-over
- They operate at temperature up to 1400°F
- They have higher watt densities than other heater bands
- They have high thermal conductivity of MI (mineral insulation)
- They have a stainless steel cover
- They are contamination resistant, and they have no folds on the outside
- The clamp variations have permanent attachment
- They need just one set of leads or terminals
Performance capabilities
- Sheath temperatures to 480°C (900°F)
- Watt densities to 8.5W/cm2 (55 W/in2)

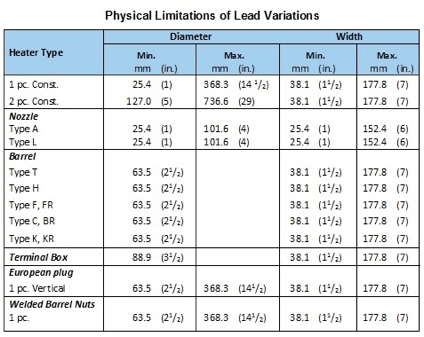

Thinband physical limitations of lead variations chart
This chart displays the availability of widths, inner diameters, and terminations for Thinband Barrel and Nozzle heaters. Refer to the below chart to make sure the available terminations will meet your application needs.
